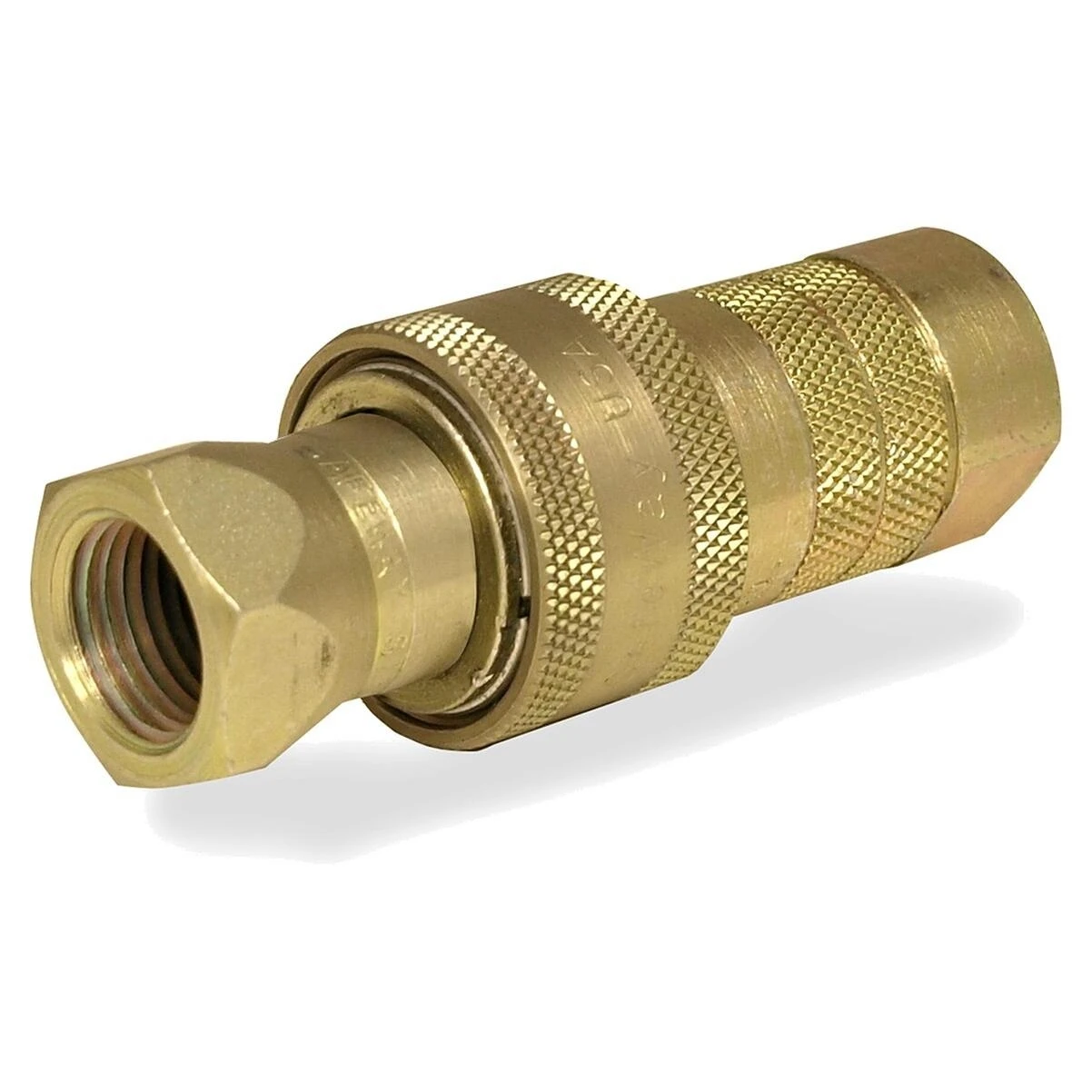

Apache Body Coupler Ball Set, 1/2-in. Fpt, One-way

The Apache 39040920 Body Coupler Ball Set is a steel hydraulic adapter designed for high-pressure applications in agricultural, construction, and industrial equipment. This quick-disconnect coupler set features a 1/2-inch female NPT (FNPT) connection and is rated for pressures up to 3000 PSI, making it suitable for demanding hydraulic systems that require reliable, secure connections.

The set includes a coupler and plug combination with an ISO 5675 body and one-way sleeve design that allows equipment to break away cleanly without hose damage when the coupler is permanently mounted. Critical parts are hardened for long service life. These couplers are interchangeable with Parker and Pioneer 4200 series units, offering compatibility with many existing hydraulic systems.

Features and Benefits

• Quick-Disconnect Design: Minimizes downtime during maintenance and equipment changeovers by enabling fast, secure connections and disconnections.
• One-Way Sleeve Technology: Allows implement break-away without hose damage when the coupler is permanently mounted, protecting your hydraulic lines from tearing.
• High-Pressure Rating: 3000 PSI capability handles tough jobs and demanding hydraulic applications in agricultural and construction settings.
• Hardened Steel Construction: Critical parts are hardened for long service life, delivering reliable performance in harsh conditions.
• ISO 5675 Compliant: Meets industry standards and is interchangeable with Parker and Pioneer 4200 series couplers for flexible system integration.

Specifications

• Brand: Apache
• Model: 39040920
• Connection Size: 1/2-Inch FNPT
• Pressure Rating: 3000 PSI
• Material: Steel
• Body Standard: ISO 5675
• Type: Body Coupler Ball Set with Coupler and Plug Combination
• Compatible With: Parker and Pioneer 4200 Series
