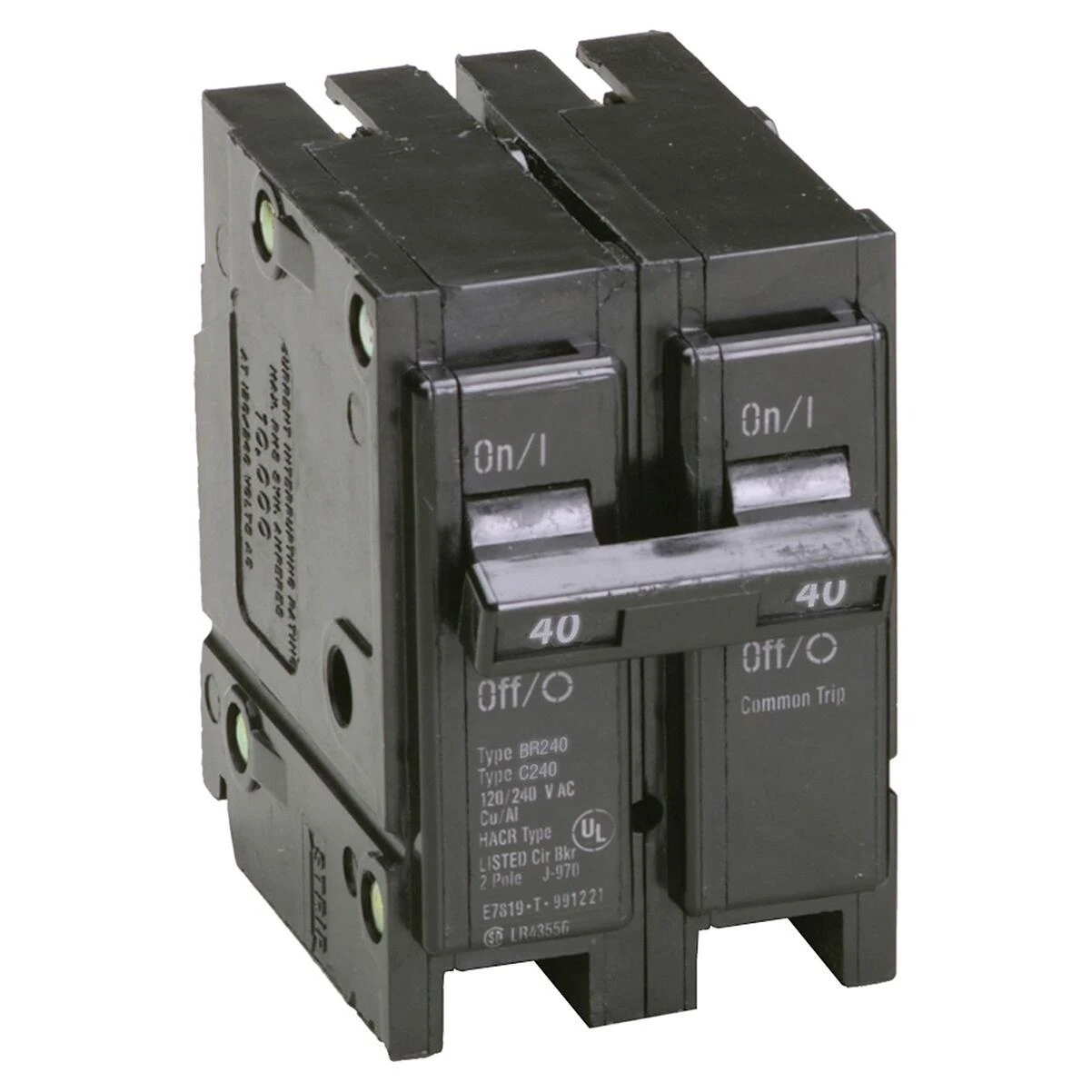

Westinghouse Eaton Br240 Double-pole Circuit Breaker, 40a, 120/240v

The Eaton BR240 is a Type BR double-pole circuit breaker rated for 40 amps at 120/240 volts. It is designed for use in electrical panels and provides protection through a thermal-magnetic trip mechanism.

This circuit breaker is fully interchangeable with panels from Cutler-Hammer, Westinghouse, Bryant, and Challenger, making it a versatile replacement option for many existing installations.

Features and Benefits

• Type BR Design: Full-size, standard-dimension breaker that fits conventional load centers and panel boxes.
• Interchangeable Compatibility: Works as a direct replacement in Cutler-Hammer, Westinghouse, Bryant, and Challenger electrical panels.
• Thermal-Magnetic Trip: Provides circuit protection through a proven thermal-magnetic mechanism.
• Double-Pole Configuration: Two-pole design for 120/240-volt circuits.
• Space Efficient: 2-inch width fits full-size panel dimensions.

Specifications

• Brand: Eaton
• Model: BR240
• Amperage Rating: 40 Amps
• Voltage Rating: 120/240V
• Poles: 2 (Double-Pole)
• Short Circuit Rating (kAIC): 10,000
• Interrupt Rating (AIR): 10,000
• Panel Spaces Required: 2
• Breaker Width: 2 inches
• Trip Type: Thermal Magnetic
