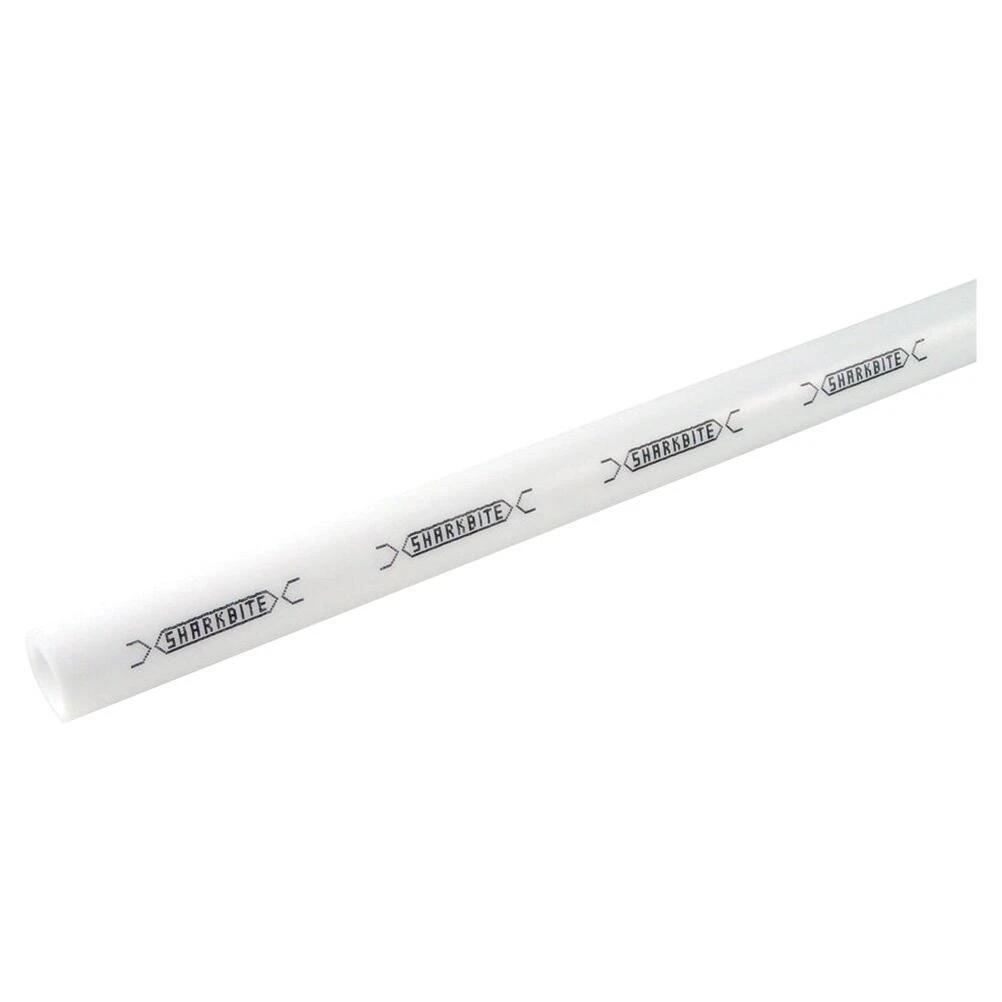

Sharkbite Sharkbite U870w5 Pex Stick Pipe, Hot/cold Water, White, 3/4 In. X 5 Ft.

SharkBite PEX Stick Pipe is a cross-linked polyethylene tubing designed for hot and cold potable water distribution systems. The white 3/4-inch rigid copper tube size (CTS) pipe comes in 5-foot lengths and is compatible with 3/4-inch quick-connect and brass PEX insert fittings. This Type B PEX pipe is manufactured using the silane method, which creates durable cross-links between polyethylene chains, resulting in superior anti-oxidant and thermal stabilizer properties that make it suitable for chlorine-resistant and continuously recirculating plumbing systems.

The pipe is rated at 1,100 PSI at 73°F and 375 PSI at 180°F, and comes with a comprehensive 25-year warranty that covers materials and labor, even when used with other manufacturers' ASTM SDR-9 certified fittings.

Features and Benefits

• High-Pressure Rating: Rated at 1,100 PSI at 73°F and 375 PSI at 180°F for dependable performance.
• Chlorine and Recirculation Compatible: Enhanced anti-oxidant and thermal stabilizer package supports continuously recirculating plumbing systems up to 140°F.
• Code Certifications: NSF-61 FDA, CSA/ASTM, and UPC listed and approved.
• Versatile Installation: Can be installed in concrete, gypsum-based lightweight concrete, sand, asphalt, under wood flooring, or behind wallboard and plaster.
• 25-Year Warranty: Comprehensive coverage for materials and labor, even when used with other manufacturers' ASTM SDR-9 certified fittings.

Specifications

• Brand: SharkBite
• Model: U870W5
• Size: 3/4 In. Rigid Copper Tube Size (CTS) x 5 Ft.
• Color: White
• Type: PEX-B (silane method cross-linked polyethylene)
• Pressure Rating: 1,100 PSI at 73°F; 375 PSI at 180°F
• Certifications: NSF-61 FDA, CSA/ASTM, UPC listed
• Warranty: 25 years (materials and labor)

Installation and Safety

• Do not use duct tape, pipe dope, threading compound, mineral oil, or linseed oil on this tubing.
• Support pipe every 30 inches vertically and horizontally.
• Protect pipe when entering or exiting slabs or walls.
• Do not kink or expose to direct sunlight.
• Maintain minimum clearances: 18 inches from water heaters, boilers, and wood-burning appliances; 12 inches from recessed lights; 6 inches from gas appliance vents.
