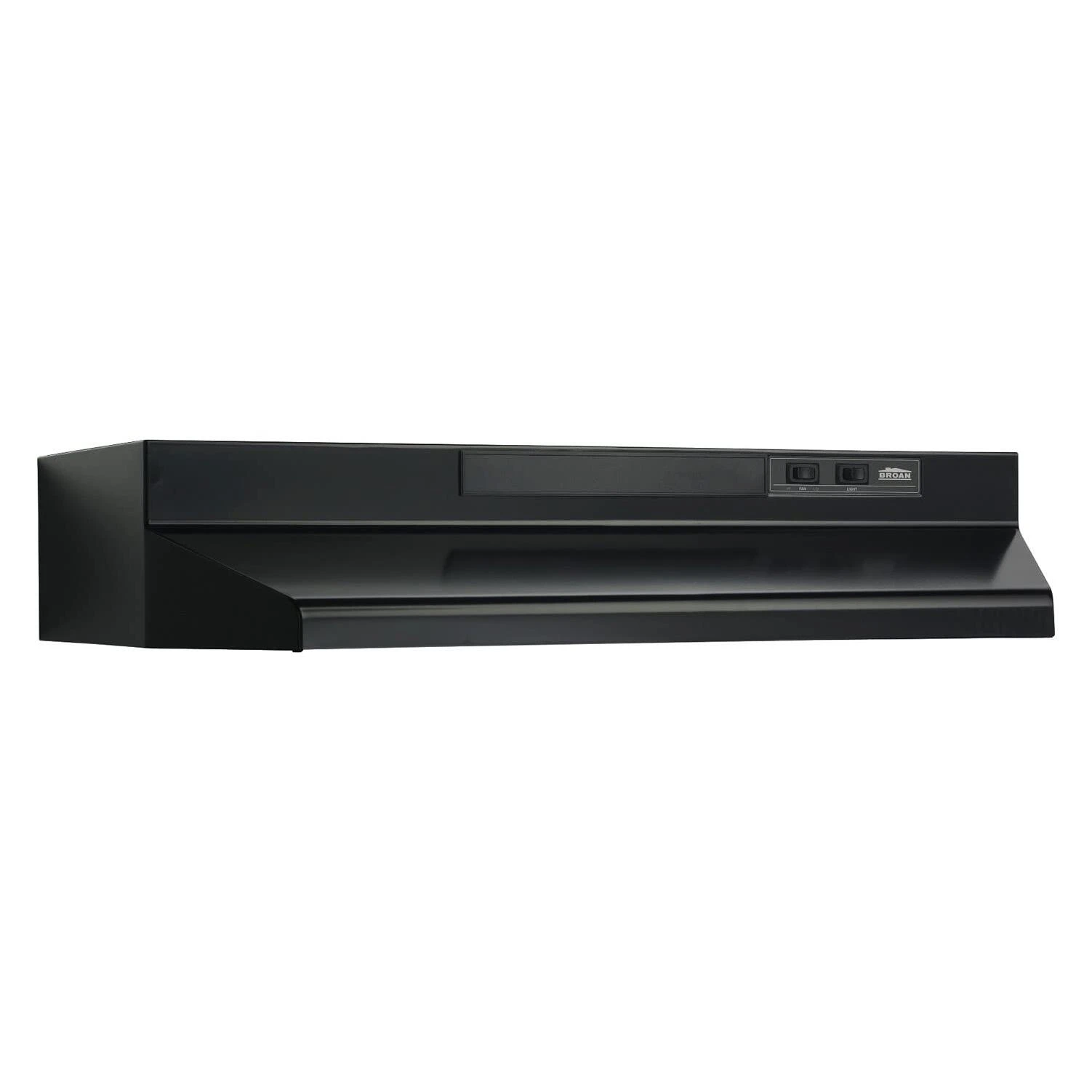

Broan Broan-nutone F403023 Range Hood, Black Ducted, 30-inch

The Broan-Nutone F403023 is a 30-inch under-cabinet range hood insert designed to fit neatly beneath your kitchen cabinets while providing powerful ventilation and integrated lighting. This ducted exhaust fan removes smoke and cooking odors quickly, keeping your kitchen air fresh and clean during and after meal preparation.

With its 2-speed fan control and 4-way convertible installation options, this range hood adapts to your kitchen layout. Install it with 3.25-inch by 10-inch vertical or horizontal ducting, 7-inch round vertical ducting, or non-ducted recirculation mode to suit your home's ventilation system. The built-in light accepts up to a 75-watt incandescent bulb to evenly illuminate your cooking area.

Features and Benefits

• Powerful ventilation: Delivers up to 230 CFM maximum airflow to efficiently eliminate cooking odors and smoke from your kitchen.
• Quiet operation: Rated at 6.5 sones, this hood balances effective ventilation with reduced noise for comfortable everyday use.
• Easy-cleaning filter: The one-piece, dishwasher-safe aluminum grease filter captures grease effectively and can be cleaned without disassembly for convenient maintenance.
• Flexible installation: Four-way convertible design works with 3.25-inch by 10-inch ducting (vertical or horizontal), 7-inch round vertical ducting, or non-ducted air recirculation.
• Integrated lighting: Built-in light with protective lens illuminates your cooktop with a rocker switch for easy control.
• Industry certified: HVI 2100 certified to guarantee performance and quality standards.

Specifications

• Brand: Broan-Nutone
• Model: F403023
• Size: 30 inches
• Color: Black
• Type: Ducted range hood insert
• Airflow: 160 CFM (3.25-inch by 10-inch discharge) or 190 CFM (7-inch round discharge)
• Sound rating: 6.5 sones
• Fan speed: 2-speed rocker switch
• Installation options: 4-way convertible (ducted or non-ducted)
• Filter: Dishwasher-safe aluminum, one-piece design
• Light: Built-in with protective lens, accepts up to 75-watt incandescent bulb (not included)
• Includes: 3.25-inch by 10-inch damper/adapter and 7-inch round adapter
• Dimensions: 6 inches by 17.5 inches by 30 inches
• Weight: 12 pounds
• Certification: HVI 2100

Installation Note

Install at least 18 inches above the cooktop. Non-ducted filter sold separately for recirculation mode installations.
